Ibanez GAX30 wiring
blacksolid3
#1 Posted : 1/18/2011 9:52:28 PM

Groups: Member
Joined: 1/18/2011(UTC)
Posts: 1
Hello Guy

Im new to the forums and i needs some help. Recently i bought an GAX30 from a friend im pretty sure its a GAX30 and its been playing pretty nicely until today I notice the neck pickup wasnt working. I unscrewed the back panel and found a lose wire. Im pretty good at soldering but im not really sure which lead of the switch to solder it too and in stead of just soldering randomly Id thought i come on here and see if any one could point me in the right direction.

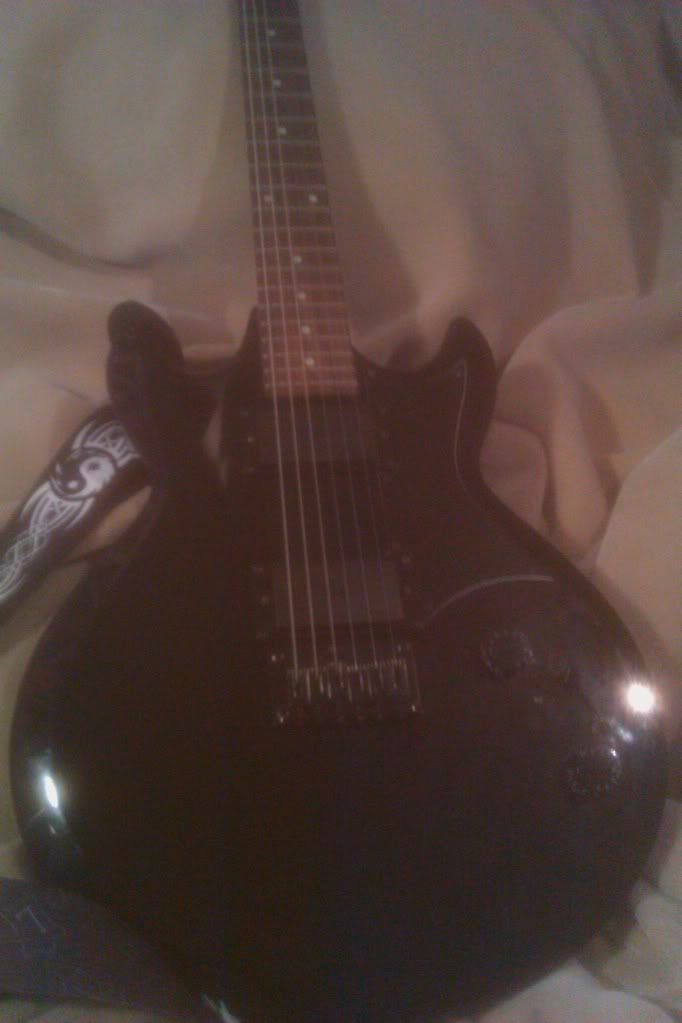

so heres a picture of the guitar like i said im pretty sure its a GAX30 but im not entirely sure


and here is inside the back panel as you can see there is a lose white wire that is crossing over the attached white wire near the switch



thanks in advance for the help
